They have been omnipresent in electrical distribution for decades. Initially, power grids depended on ordinary circuit fuses and breakers for protection against overload to transformers and electrical lines. However, as demand for electricity grew and networks expanded, an efficient solution was needed. This included the creation of cutout fuses, which combined overload protection and switching in one fuse body.
Early fuse cutouts were constructed of porcelain due to its insulation properties and durability. However, modern designs incorporate polymer fuse cutouts to provide greater weather resistance and longer life. Nowadays, drop fuse cutouts are components of overhead power lines, enabling reliable and safe electrical distribution around the globe.
A fuse cutout combines a fuse and a switch used in overhead power distribution systems to protect transformers and electrical circuits from overcurrent and short circuits. Under abnormal conditions like tree branches physically touching the power lines, excessive current flow circuit is encountered, and the fuse link in the cutout melts, disconnecting the circuit and saving equipment from being damaged.
They can also function as a manual disconnection switch, which enables a lineman to safely disconnect and work on the transformer or section of the grid. These devices are used on industrial and residential power grids to supply power without interruption and enable fault detection.

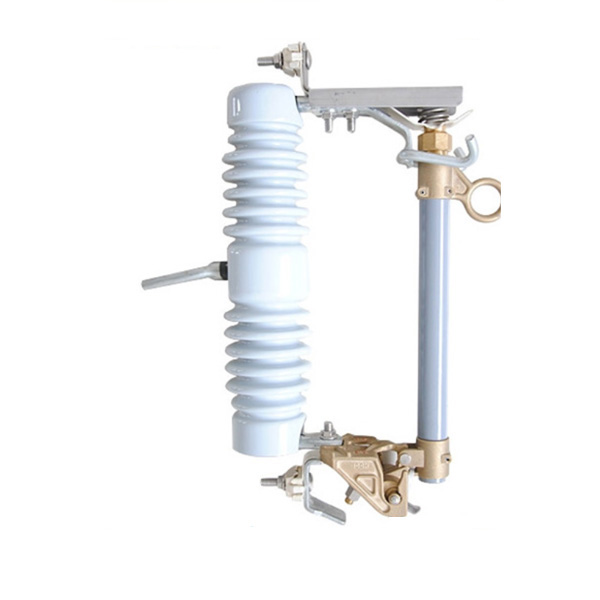

The fuse cutout consists of the following parts:

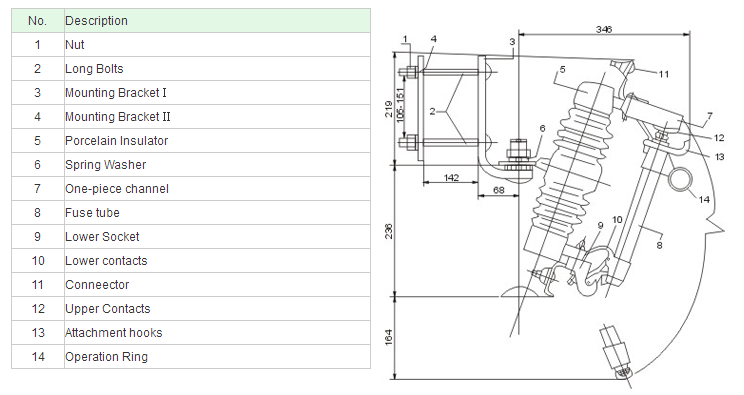

GOTO Electric Fuse Cutout Structure
| No. | Component | Description |
| 1 | Nut | Secures the assembly together. |
| 2 | Long Bolts | Provides structural stability. |
| 3 | Mounting Bracket I | Helps in securing the fuse cutout to a pole. |
| 4 | Mounting Bracket II | Additional support for mounting. |
| 5 | Porcelain Insulator | Electrically isolates conductive parts. |
| 6 | Spring Washer | Ensures firm contact and prevents loosening. |
| 7 | One-piece channel | Provides additional support for mounting. |
| 8 | Fuse Tube | Houses the fuse link, which melts upon overcurrent. |
| 9 | Lower Socket | Holds the fuse tube in place. |
Material Differences: Porcelain vs. Polymer Fuse Cutouts
Porcelain Fuse Cutout: Offers durability but is heavier and prone to cracking over time.
Polymer Fuse Cutout: Lightweight, weather-resistant, and less susceptible to breakage.
The operation of a fuse cutout can be broken down into a few simple steps:
Normal Operation: The electrical current flows through the fuse link, maintaining a continuous supply.
Fault Occurrence (Overcurrent): When a surge or fault occurs, the current exceeds the fuse link’s rated capacity.
Fuse Melts and Breaks the Circuit: The fuse link inside the fuse holder melts, causing the fuse holder to drop from the upper contact.
Visible Fault Indication: The dropped fuse holder hangs, providing a clear signal that the fuse has blown.
Manual Restoration: Linemen use a hot stick to remove the old fuse link, replace it with a new one, and restore power by reinserting the fuse holder.
They are crucial in power distribution due to the following benefits:
Prevents Transformer Damage
Protects expensive electrical equipment from damage caused by power surges.
Reduces Widespread Outages
Isolates faults locally before they affect the entire electrical grid.
Enhances Grid Reliability
Provides a quick and visible fault indicator, allowing for faster repairs.
Cost-Effective Solution
A low-cost protection device compared to expensive transformer replacements.
Manual Switching Capability
Acts as a switching device, allowing safe transformer disconnection for maintenance.
A fuse cutout is essential in electrical distribution, protecting the PUD’s distribution system and providing a simple, easily replaced failsafe that keeps more expensive equipment from damage due to overcurrent. Whether using traditional porcelain cutout fuses or modern polymer fuse cutouts, these devices prevent power failures, reduce equipment damage, and enhance grid stability.
For power companies and linemen, understanding drop fuse cutouts ensures better maintenance efficiency and grid reliability. Investing in high-quality electrical fuse cutouts enhances safety, longevity, and overall performance in power distribution.
