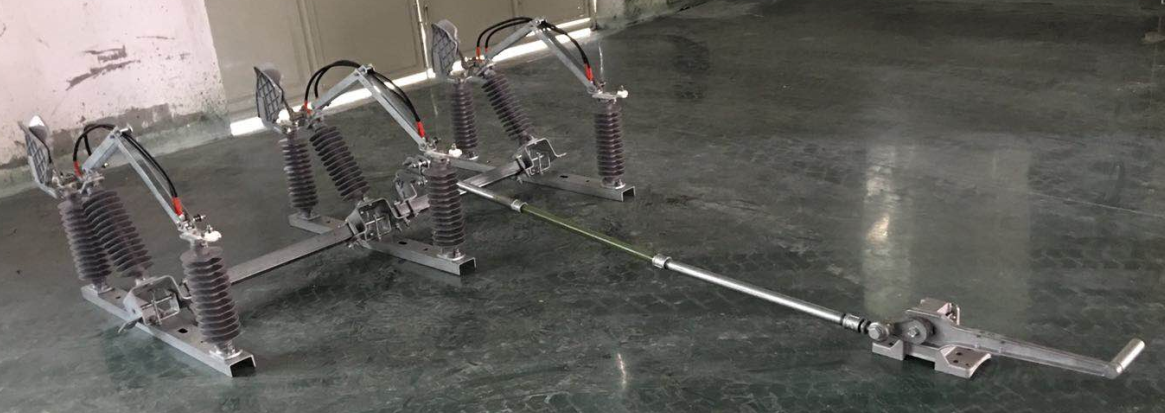

Outdoor AC Gang isolator switch 11kv/400A-33kv/600A used in 3phase AC 50/60Hz power circuit, it is used as switching on and switching off at the voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102: 2002
Note: For detail, please refer to the catalogue.
Product Description
Outdoor AC Gang isolator switch 11kv/400A-33kv/600A used in 3phase AC 50/60Hz power circuit, it is used as switching on and switching off at the voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102: 2002
| Model | Rated
voltage (KV) |
Rated current
(A) |
4S Heat steady e. c. A | Impulse withstand voltage A | Impulse voltage | Power frequency withstand voltage | ||
| To earth KV | Across the isolating distance KV | To earth KV | Across the isolating distance KV | |||||
| RH-B | 11 | 6300 | 12500 | 31500 | 75 | 95 | 38 | 42 |
| RH-B | 33 | 630 | 12500 | 31500 | 170 | 195 | 70 | 80 |
Note: For detail, please refer to the catalogue.
Quick Brief
Place of Origin: Zhejiang China (Mainland)
Brand Name: HV
Model Number: RH-B-11/33kV
Max. Current: 600A
Max. Voltage: 36KV
Product name: disconnecting switch,Outdoor Gang…
Model NO: RH-B-11/33kV
Standard: 11/36kv
Installation: Open Frame
HS Code: 8535300000
Product Features:
Disconnecting switch
Model NO.:RH-B-11/33kV
Rated volatge:11/36kV
Rated current :600A
Rated power frequency:50/60Hz
Product Description
Outdoor AC Gang isolator switch 11kv/400A-33kv/600A used in 3phase AC 50/60Hz power circuit, it is used as switching on and switching off at the voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102: 2002
| Model | Rated
voltage (KV) |
Rated current
(A) |
4S Heat steady e. c. A | Impulse withstand voltage A | Impulse voltage | Power frequency withstand voltage | ||
| To earth KV | Across the isolating distance KV | To earth KV | Across the isolating distance KV | |||||
| RH-B | 11 | 400 | 12500 | 31500 | 75 | 95 | 38 | 42 |
| RH-B | 33 | 600 | 12500 | 31500 | 170 | 195 | 70 | 80 |
Note: For detail, please refer to the catalogue.
Quick Brief
Place of Origin: Zhejiang China (Mainland)
Brand Name: HV
Model Number: RH-B-11/33kV
Max. Current: 600A
Max. Voltage: 36KV
Product name: disconnecting switch,Outdoor Gang…
Model NO: RH-B-11/33kV
Standard: 11/36kv
Installation: Open Frame
HS Code: 8535300000
Product Features:
Disconnecting switch
Model NO.:RH-B-11/33kV
Rated volatge:11/36kV
Rated current :600A
Rated power frequency:50/60Hz
Product Description
Outdoor AC Gang isolator switch 11kv/400A-33kv/600A used in 3phase AC 50/60Hz power circuit, it is used as switching on and switching off at the voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102: 2002
| Model | Rated
voltage (KV) |
Rated current
(A) |
4S Heat steady e. c. A | Impulse withstand voltage A | Impulse voltage | Power frequency withstand voltage | ||
| To earth KV | Across the isolating distance KV | To earth KV | Across the isolating distance KV | |||||
| RH-B | 11 | 400 | 12500 | 31500 | 75 | 95 | 38 | 42 |
| RH-B | 33 | 600 | 12500 | 31500 | 170 | 195 | 70 | 80 |
Note: For detail, please refer to the catalogue.
Quick Brief
Place of Origin: Zhejiang China (Mainland)
Brand Name: HV
Model Number: RH-B-11/33kV
Max. Current: 600A
Max. Voltage: 36KV
Product name: disconnecting switch,Outdoor Gang…
Model NO: RH-B-11/33kV
Standard: 11/36kv
Installation: Open Frame
HS Code: 8535300000
Product Features:
Disconnecting switch
Model NO.:RH-B-11/33kV
Rated volatge:11/36kV
Rated current :600A
Rated power frequency:50/60Hz
