IEEE Standard Sprcifications for High-Volage (＞1000V) Fuses and Accessories
IEC 60282-2 High-voltage fuses
IEEE Standard Sprcifications for High-Volage (＞1000V) Fuses and Accessories
IEC 60282-2 High-voltage fuses
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | GTFC | 11/15 | 100 | 6300 | 95/110/125 | 42 | 220/330 | 7.5 | 58x32x37 |
| 2 | GTFC | 11/15 | 200 | 8000 | 95/110/125 | 42 | 220/330 | 7.5 |

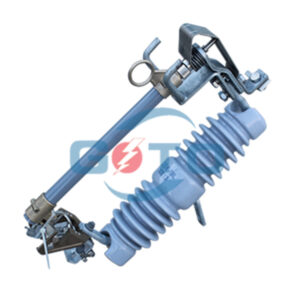

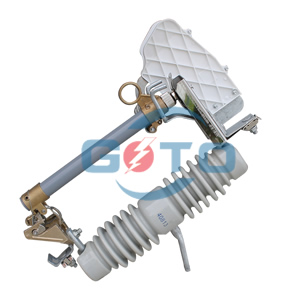

Porcelain Drop Fuse Type Photo
 |
 |
 |
 |
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | GTFC | 12/15 | 100 | 6300 | 125 | 42 | 220-372 | 7.5 | 58x32x37 |
| 2 | GTFC | 12/15 | 200 | 8000 | 125 | 42 | 220-372 | 7.5 |

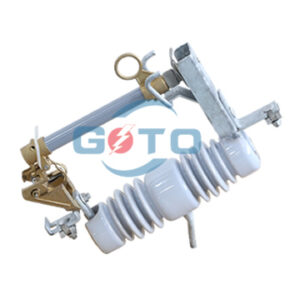

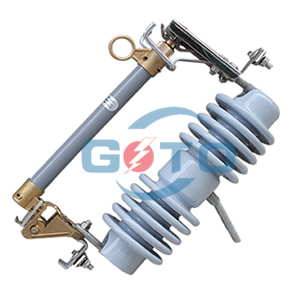

Porcelain Drop Fuse Type Photo
 |
|
|
 |
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | GTFC | 21/27 | 100 | 6300 | 125/150 | 48 | 372-600 | 8.5 | 58x32x37 |
| 2 | GTFC | 21/27 | 200 | 8000 | 125/150 | 48 | 372-600 | 8.5 |

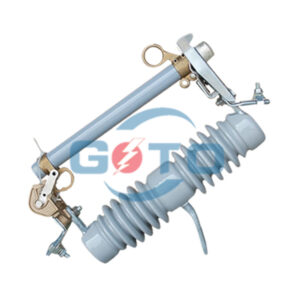

Porcelain Drop Fuse Type Photo
|
|
 |
|
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | GTFC | 33 | 100 | 6300 | 170 | 70 | 660-730 | 10.5 | 58x32x37 |
| 2 | GTFC | 33 | 200 | 8000 | 170 | 70 | 660-730 | 10.5 |

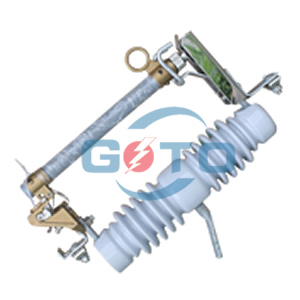

Porcelain Drop Fuse Type Photo
 |
|
|
|
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | GTFC | 33/36 | 100 | 6300 | 170 | 42 | 660-900 | 11.5 | 58x32x37 |
| 2 | GTFC | 33/36 | 200 | 8000 | 170 | 42 | 660-900 | 11.5 |

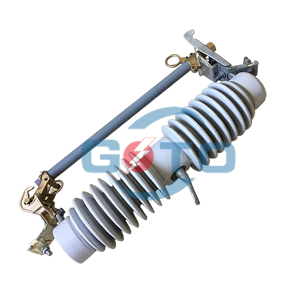

Porcelain Drop Fuse Type Photo
|
|
|
|
