IEEE Standard Sprcifications for High-Volage (＞1000V) Fuses and Accessories
IEC 60282-2 High-voltage fuses
IEEE Standard Sprcifications for High-Volage (＞1000V) Fuses and Accessories
IEC 60282-2 High-voltage fuses
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | HGTF | 36 | 100 | 6300 | 170 | 70 | 970-1200 | 7.5 | 58x32x37 |
| 2 | HGTF | 36 | 200 | 8000 | 170 | 70 | 970-1200 | 7.5 |

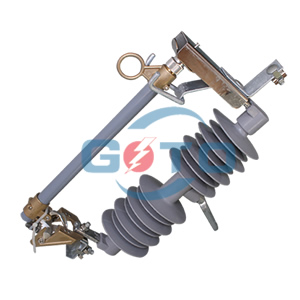

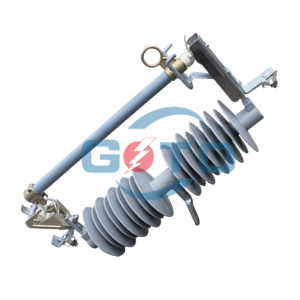

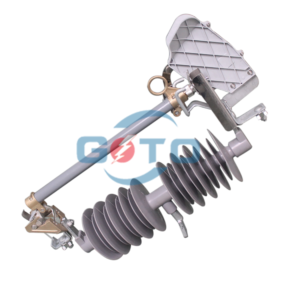

Poymer (Arc) Drop Fuse Cutout
 |
 |
 |
 |
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | HGTF | 33 | 100 | 6300 | 150 | 60 | 970-1080 | 7.5 | 58x32x37 |
| 2 | HGTF | 33 | 200 | 8000 | 150 | 60 | 970-1080 | 7.5 |

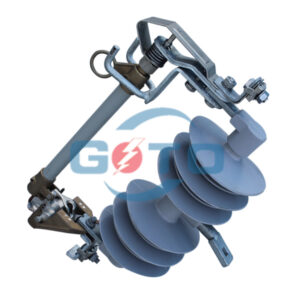

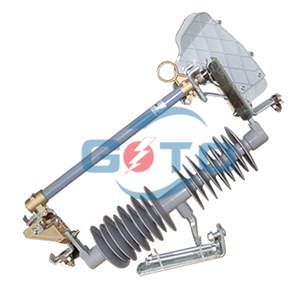

Poymer (Arc) Drop Fuse Cutout
|
 |
|
 |
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | HGTF | 27 | 100 | 6000 | 150 | 65 | 600-760 | 13.8 | 58x32x37 |
| 2 | HGTF | 27 | 200 | 10000 | 150 | 65 | 600-760 | 13.8 |

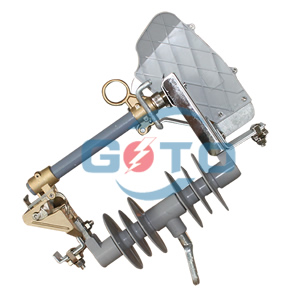

Poymer (Arc) Drop Fuse Cutout
|
 |
|
 |
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | HGTF | 24 | 100 | 6300 | 150 | 70 | 660-760 | 7.5 | 58x32x37 |
| 2 | HGTF | 24 | 200 | 8000 | 150 | 70 | 660-760 | 7.5 |

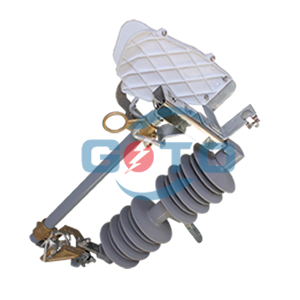

Poymer (Arc) Drop Fuse Cutout
|
|
|
|
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | HGTF | 15 | 100 | 6300 | 125 | 42 | 350-500 | 7.5 | 58x32x37 |
| 2 | HGTF | 15 | 200 | 8000 | 125 | 7042 | 350-500 | 7.5 |

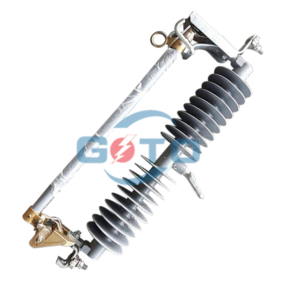

Poymer (Arc) Drop Fuse Cutout
 |
|
|
|
| No. | Product number | Rated voltage （kV） |
Rated current (A) |
Breaking current (A) |
Impulse voltage (BIL) |
Power frequency withstand voltage |
Climb away from(MM) |
Weight(KG) | Size(CM) |
| 1 | HGTF | 11 | 100 | 6300 | 110 | 42 | 350-415 | 7.5 | 58x32x37 |
| 2 | HGTF | 11 | 200 | 8000 | 110 | 42 | 350-415 | 7.5 |

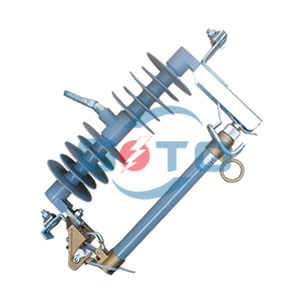

Poymer (Arc) Drop Fuse Cutout
|
|
|
|
