Composite line post insulators
Composite line post insulators
Composite line post insulators are electrical components used to support overhead electrical conductors in power distribution and transmission systems. They consist of a core material made of insulating silicone rubber or other polymer materials, surrounded by a weather-resistant, flexible outer shell. They offer several advantages over traditional porcelain or glass insulators, including higher mechanical strength, lighter weight, and resistance to environmental factors such as moisture, UV radiation, and pollution.
- WhatsApp: +8615858595050
- Skype:+8615858595050
- Email: sale16@gotoelectrical.com
- Wechat:

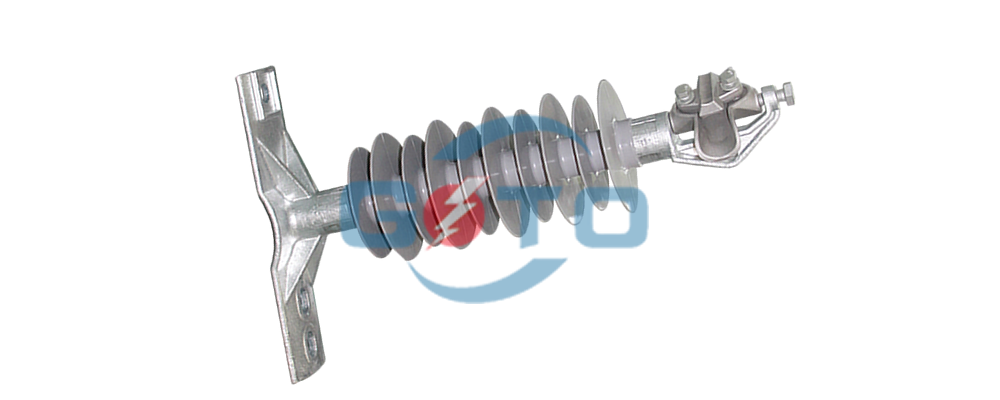

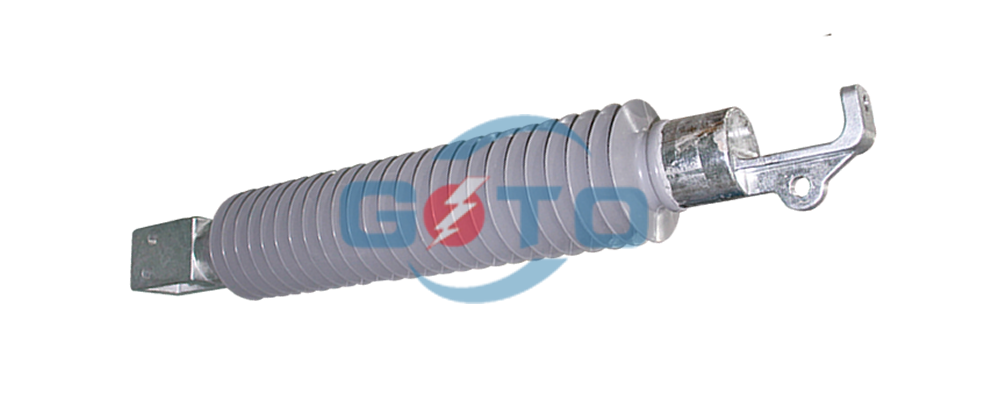

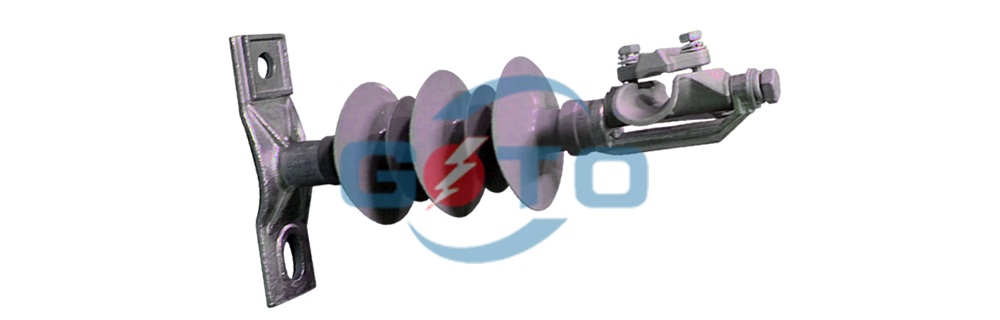

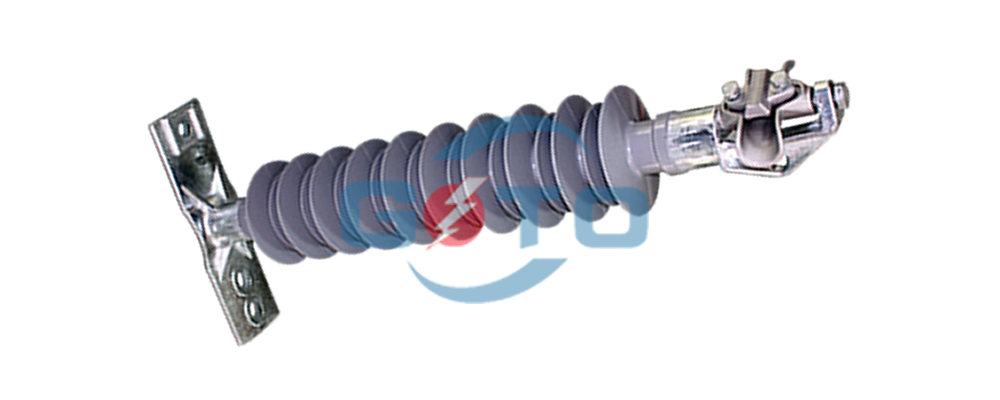

Composite line post insulators
Composite line post insulators Performance and size
|
NO. |
The number of product model |
Rated voltage（kv） |
The minimum nominal creepage distance
(mm)
|
Rated mechanical failure load |
1min power frequency wet withstand voltage (RMS) not less than (kV) |
Full wave lightning impulse withstand voltage (peak) (kV) |
The height of the structure (mm) |
Minimum arc distance(mm) |
|
|
Bend(KN) |
Reverse(KN.m) |
||||||||
|
1 |
FZ-11/15 |
11/15 |
430 |
8 |
1.2 |
45 |
110 |
310 |
208 |
|
NO. |
The number of product model |
Rated voltage（kv） |
The minimum nominal creepage distance
(mm)
|
Rated mechanical failure load |
1min power frequency wet withstand voltage (RMS) not less than (kV) |
Full wave lightning impulse withstand voltage (peak) (kV) |
The height of the structure (mm) |
Minimum arc distance(mm) |
|
|
Bend(KN) |
Reverse(KN.m) |
||||||||
|
2 |
FZ-24/33 |
24/33 |
1116 |
12.5 |
1.5 |
95 |
210 |
515 |
376 |
|
NO. |
The number of product model |
Rated voltage（kv） |
The minimum nominal creepage distance
(mm)
|
Rated mechanical failure load |
1min power frequency wet withstand voltage (RMS) not less than (kV) |
Full wave lightning impulse withstand voltage (peak) (kV) |
The height of the structure (mm) |
Minimum arc distance(mm) |
|
|
Bend(KN) |
Reverse(KN.m) |
||||||||
|
3 |
FZ-66/72 |
66/72 |
2200 |
10 |
2 |
120 |
240 |
820 |
650 |
|
NO. |
The number of product model |
Rated voltage（kv） |
The minimum nominal creepage distance
(mm)
|
Rated mechanical failure load |
1min power frequency wet withstand voltage (RMS) not less than (kV) |
Full wave lightning impulse withstand voltage (peak) (kV) |
The height of the structure (mm) |
Minimum arc distance(mm) |
|
|
Bend(KN) |
Reverse(KN.m) |
||||||||
|
4 |
FZ-66/69 |
66/69 |
2335 |
22 |
2.1 |
275 |
350 |
1063 |
740 |
ORDER NOW >> enter Higher Quantity (over 200) to Request a Quote <<
For more Other high-voltage products. please contact a sales representative at sale16@gotoelectrical.com or submit a Quote Request.
